13-CB

Custom Bay Window Rods

      • Made to your size and joined in the corners with patent-pending coil connectors for easy and quick installation. We do the math for angles and bracket projections and rod diameters. Just give us the easy physical wall measurements we describe. Now decorative metal rods for bay windows are easier than wood!

        Each rod has the finials welded to the end, and comes in interconnecting sections for easy handling and to minimize shipping charges. All rods will be the same diameter for the length specified. You specify the exact length. Rods will have minor visible seams where interconnected, but no lips as with an adjustable rod. We locate seams at bracket locations to further minimize their appearance, unlike adjustable rods. Also, you may specify the seam location preferences up to 45" spacing between the seams. We will make every effort to accommodate your request. Otherwise, seams will be equally spaced apart between brackets up to 45". We allow 1-1/2" from the center of the outer bracket to the base of the finials.

        Bay window rods are joined in the comers with a flexible wire coil (like a spring), which fits inside the hollow steel rods. This allows the rods to flex, so that if your wall is not at the same angle as where it was measured, the rod will still fit nicely. It allows for adjustments of up to 3" in length, by exposing more of the wire coil connector. We ship the bay with the optimal amount of coil viewed from the front to be only 1/4" to 1/2". The optimal amount is mathematically determined based on the information you provide for the BLB, BCB, and BRB measurements, as well as the angles in the bay, combined with information we already know about the bracket projection and rod diameters. We do the math and the rod will fit perfect every time making the installation quick and easy!

        Brackets are ordered separately and you select the type of mounting system (wall, ceiling or inside).

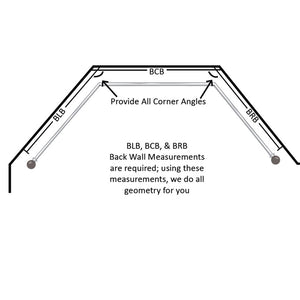

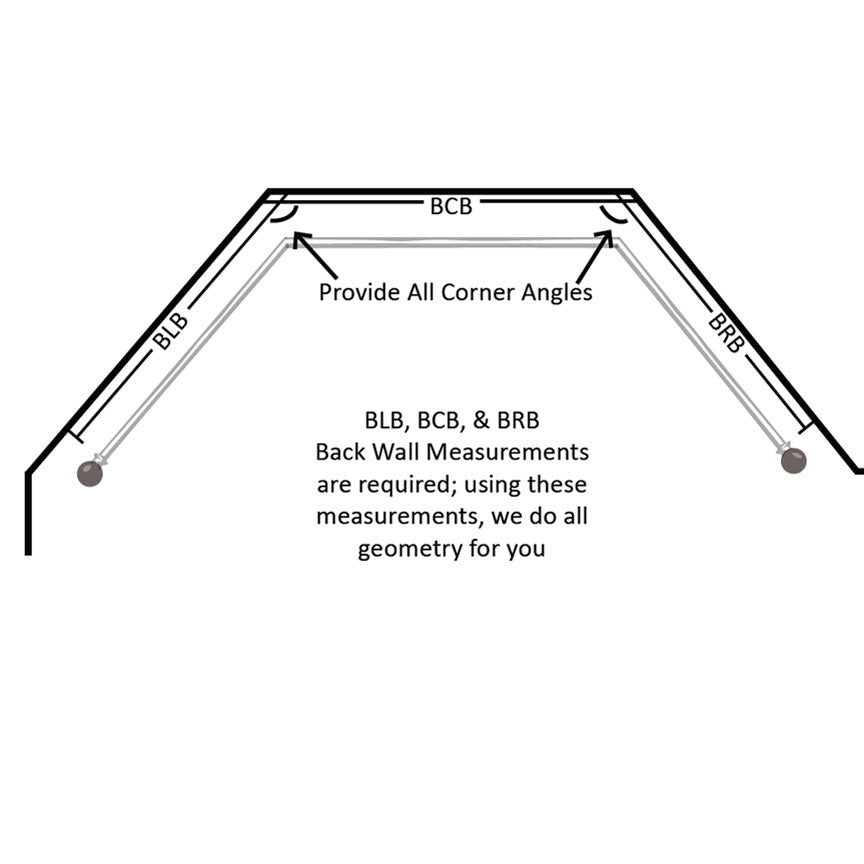

        By having your rod custom sized, you get easy installation as all parts are factory cut and finished. Custom rods are priced as a base cost for four feet, plus a charge for each foot or fraction thereof. All measurements are from finial base to finial base. When requesting a quote for a custom rod, we will be happy to assist you. Diagrams of custom rod styles are below and show the measurements required.

        SPECIFICATIONS

        Dimensions: Custom x 7/8" to 1-1/8" diameter (Depending on finial - Selections shown below)
        Weight:
        Finish: All drapery rods, brackets and rings have scratch resistant baked matte finish in black or brown or may be hand-finished in your choice of custom colors for an extra charge. - To see options please select option links.
        Material: Metal
        Contains: Doe not include brackets. Please be sure to order them separately.
        Ships: Ground Delivery
      • If you have questions on measuring for a custom bay window rod - may we suggest you read our helpful guide - (Measurement Guide for Bay Window Rods)

      • This exciting line of drapery hardware, inspired by 18th and 19th century European iron works, is hand crafted and hand finished to order. Drapery rings and brackets are normally in stock in black & brown and ship in 3-5 days. All other items will ship in 7-14 business days.

        If you have questions or would like to check availability on an item please call 866-Get-Iron or email us.

        Drapery Rush Program

        For guaranteed drapery hardware production times, request a RUSH at time of order. We will expedite your order through the factory and make every possible effort to insure your drapery hardware order is shipped on time or sooner.

        Additional fees are as follows, subject to a $25.00 minimum rush fee:
        7 Day Rush Shipment in 7 workdays or sooner - add 15%
        5 Day Rush Shipment in 5 workdays or sooner - add 30%
        3 Day Rush Shipment in 3 workdays or sooner - add 45%

        Should a rush order run late, we will pay for UPS air as necessary to make up the delay so you will receive your order on time. For example, if you place the order on a 7 day rush , and we run 1 day late; so we send the order by 3rd day air if you requested ground, 2nd day air if you requested 3rd day, and overnight if you requested 2nd day.

        Should we miss our due date and not be able to make up the lost time by accelerating the transit times, then our guarantee is a full refund of the Rush fees for your drapery hardware and no charge for freight. No other allowances or deductions may be claimed.
