              Home / Products / Grayson Iron Corbel - 3"
              Grayson Iron Corbel - 3"-Iron Accents
              Grayson Iron Corbel - 3"-Iron Accents

              99-GR30B

              Grayson Iron Corbel - 3"

              $158.00

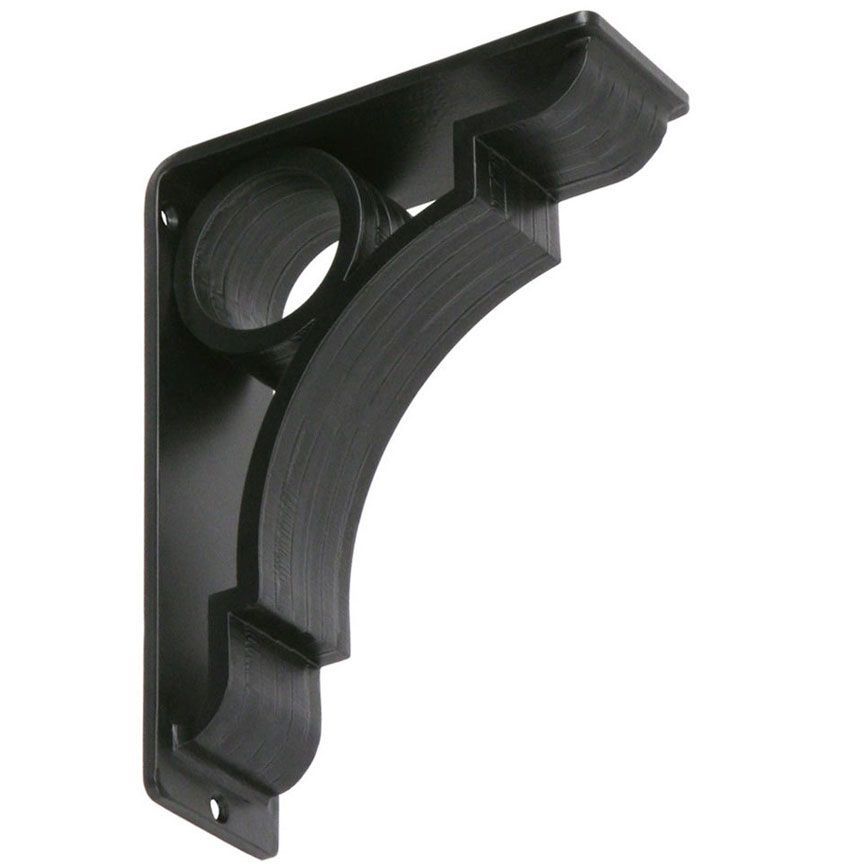

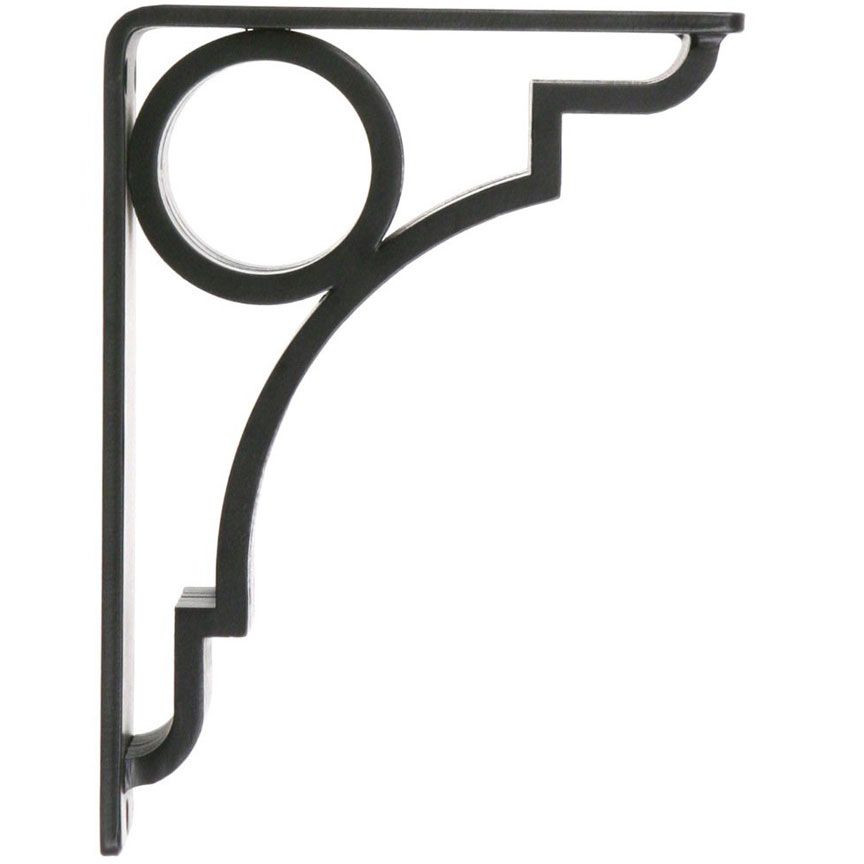

                  • The cove-shaped design of the transitional Grayson wrought iron corbel adds charm throughout the house. Custom made here in the USA this is a bracket that can be used to support everything from open shelving to granite countertops. Unfinished ready to paint or in your choice of hand-applied finishes.

                    Six .375" cut-outs are joined together to make the 2.25" wide design on this corbel. The 3" wide x .25" thick back plate is pre-drilled for mounting. There are three .25 wide back plate holes that are countersunk so the screws will sit flush. The back-plate top holes are 1" on center apart from each other - .125" in from the side and 1" down from the top-plate. The bottom hole is .375" up from the bottom of the back-plate. Top plate holes are optional – If needed please be sure to select that as an option. This corbel can support up to 150lbs if installed correctly.

                    SPECIFICATIONS
                    Dimensions: (Backplate) 3" x .25". (Design) 2.25" wide
                    7.5 x 10 x 3
                    Finish: (Shown above in black finish)
                    Available unfinished ready for paint or in a manufacturer applied finish.
                    Material: Steel
                    Contains: Sold individually. Hardware is not included. (when mounting to solid wood or studs we recommend using #12 1.5 or 2 inch twin-thread cabinet screws)
                    o solid wood or studs we recommend using #12 1.5 or 2 inch twin-thread cabinet screws)
                    Ships: Ground Delivery
                    Shipping within the continental US is included in the price.
                    Hand made to order - in the USA
                  • Pre-drilled for mounting with 3- .25 holes that are countersunk so the screws will sit flush. The back-plate top holes are 1" on center apart from each other - .125" in from the side and 1" down from the top-plate. The bottom hole is .375" up from the bottom of the back-plate. If you need top holes for shelving, etc. - Please select as an option.

                    Have Questions? (Wrought iron corbel guide)

                    If you are interested in installing your corbels yourself, then please take the time to read these tips and instructions (Corbel Installation) Your application will dictate how the corbels need to be installed properly.

                  • Shipping in 5-7 Business Day's (Hand-Crafted in the USA)

                    Fabricated and finished to order. When we confirm your order we will email you an expected shipping date. If you have questions or would like to check availability on any item in this line please call 866-Get-Iron or email us.

              Collections: Custom Corbels - Wrought Iron Corbels and Brackets, Wrought Iron & Metal Corbels - Countertop Support
