99-KE40A

Kelsey Iron Corbel - 4"

      • For any application that requires iron brackets with a bold persona the Kelsey 4-inch Corbels are the perfect choice. At a stately 4 inches wide, this design is meticulously crafted of laser cut steel, with a 1/4" back plate and designs that are heavier than any other the market. So when it comes to mantles, countertops, or anything else you want to support, it won't be the bracket that you need to worry about. Please select that as an option. Unfinished ready to paint or in your choice of hand-applied finishes.

        This corbel can support up to 150lbs if installed correctly. The back-plate is 4" wide x .25" thick and consists of eight .375" cut-outs that are joined together to make a 3" wide design. pre-drilled for mounting - there are three .25" wide holes in the back plate that are countersunk so the screws will sit flush. The back-plate top holes are 1" on center apart from each other - .125" in from the side and 1" down from the top-plate. The bottom hole is .375" up from the bottom of the back-plate. Top plate holes are optional.

        SPECIFICATIONS

        Dimensions: (Deep x High x Wide)
        5.5 x 8 x 4
        7.5 x 10 x 4
        Weight:

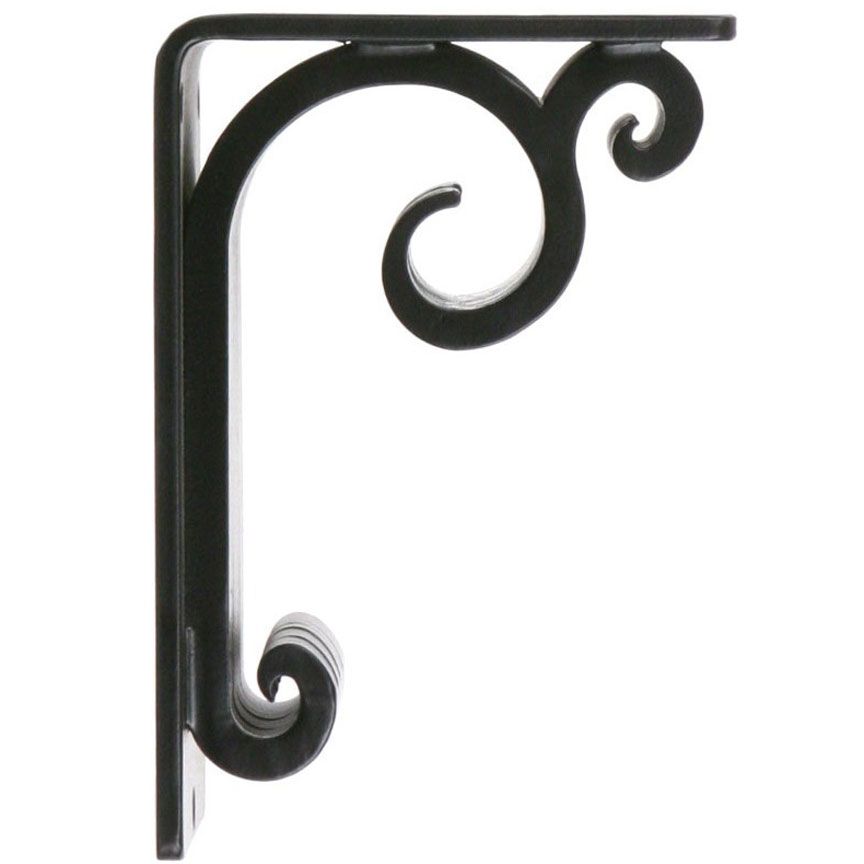

        Finish: Available unfinished ready for paint or in a variety of custom manufacturer applied finishes. Select the view option tab for more information. (Shown above in black finish)
        Material: Steel
        Contains: Sold individually. Hardware is not included. (when mounting to solid wood or studs we recommend using #12 1.5 or 2 inch twin-thread cabinet screws)
        Ships: Ground Delivery

        Have Questions? Please read our guidelines for buying and installing wrought iron corbels and brackets
        Installing your Corbels - If you are interested in installing your corbels yourself, then please take the time to read these tips and instructions. Your application will dictate how the corbels need to be installed properly.

      • Have Questions? Please read our guidelines for (Buying wrought iron corbels and brackets)

        If you are interested in installing your corbels yourself, then please take the time to read these tips and instructions (Corbel Installation)
        Your application will dictate how the corbels need to be installed properly.

      • Shipping in 5-7 Business Day's (Hand-Crafted in the USA)

        Fabricated and finished to order. When we confirm your order we will email you an expected shipping date. If you have questions or would like to check availability on any item in this line please call 866-Get-Iron or email us.
